GPS Antennas – Everything You Need To Know

Summary

  • Definition: GPS antennas receive signals from GPS satellites, crucial for location tracking and navigation.
  • Components:

    • GPS Receiver: Interprets satellite signals to determine location.
    • GPS Antenna: Captures and conveys satellite signals.
    • Coax Cables: Connects antenna to receiver, minimizing signal loss.
    • SMA Connector: Ensures stable connection between antenna and coax cable.
    • Mounting Options: Optimizes signal reception.
    • Antenna Accessories: Includes adapter cables and development boards for customization.
  • Operation:

    • Receiving Signals: Captures satellite signals.
    • Signal Transfer: Sends signals to the receiver via coax cable.
    • Data Processing: GPS module processes signals to calculate location.
    • GPS Networking: Multiple antennas enhance precision.
    • Output Generation: Provides navigation information.
    • Design Variants: Low-profile and outdoor designs for varied environments.
  • Types:

    • Geodetic Antennas: High accuracy for fixed applications (e.g., surveying).
    • Rover Antennas: Mobile tracking for real-time applications (e.g., forestry).
    • Handheld Antennas: Portable for personal navigation (e.g., hiking).
  • Performance Factors:

    • Signal Interference: Affected by nearby devices and structures.
    • Placement: Obstructions can hinder signal acquisition.
    • Environmental Conditions: Weather and terrain impact signal strength.
    • Quality: Higher quality antennas and cables improve performance.
  • Multi-System Support: Many GPS antennas support multiple satellite systems (e.g., GLONASS, Galileo) for enhanced accuracy.
If you’ve ever wondered how your smartphone pinpoints your exact location, you’re in the right place. Our security experts at GPS Tracker Shop are here to help and explain everything you need to know about GPS antennas, how they work, and why they are important. We’ll break down their design, functionality, and the crucial role they play in modern navigation and communication systems. By understanding the technology behind GPS antennas, you’ll appreciate how they convert satellite signals into precise location data. Let’s first start with the basics – what is a GPS antenna?

What Is a GPS Antenna?

What Is A GPS Antenna?

A GPS antenna is a device designed to receive signals from GPS satellites orbiting the Earth. The GPS antenna is super important because it plays a crucial role in determining your location by capturing these signals, which are essential for navigation and tracking purposes. These antennas come in various shapes and sizes, tailored to meet the needs of different applications, from smartphones to vehicle navigation systems.

GPS antennas capture signals from satellites by aligning with the satellite’s frequency band. This ensures a clear communication channel between the satellite and the antenna, enabling the accurate transmission of location data. The efficiency of this process depends on the antenna’s design and its ability to minimize signal interference.

Now, let’s clarify a few terms. “Frequency band” refers to a specific range of frequencies within the electromagnetic spectrum used for transmitting and receiving GPS signals. An “active GPS” antenna includes a built-in amplifier to boost the signal strength, improving accuracy in determining a location. On the other hand, a “GNSS antenna” is designed to receive signals not just from GPS, but from other satellite navigation systems as well, such as GLONASS (Russia), Galileo (European Union), and BeiDou (China). This versatility enhances the antenna’s ability to provide more accurate location data by accessing a broader array of satellites.

Understanding these components and how they work together helps you appreciate the sophistication behind GPS technology. GPS antennas aren’t just about picking up signals; they are about doing so efficiently and accurately to keep you informed and on course, wherever you might be.

Key Components Of A GPS Antenna System

Now that you know what a GPS antenna is, let’s take a closer look at some of the key components essential to its operation, especially in the context of GPS asset trackers. Understanding these components and their functions will clarify how they contribute to accurately tracking the location of your assets.

COMPONENT

FUNCTION

IMPORTANCE

GPS Receiver

Interprets signals from satellites to determine the precise location.

Central to calculating the exact position of the asset.

GPS Antenna

Captures satellite signals and conveys them to the receiver.

Its efficiency in capturing signals directly affects tracking accuracy.

Coax Cables

Connects the antenna to the receiver, transmitting signals with minimal loss.

Essential for the reliable transfer of satellite signals to the receiver.

SMA Connector

Facilitates the attachment of the antenna to the coax cable.

Ensures a stable, high-quality connection between components.

Mounting Options

Pole Mounting: Secures antenna for clear sky visibility. - Screw Mount: Fixes antenna in a stable position.

Enhances signal reception by optimizing antenna placement.

Antenna Accessories

Includes adapter cables and development boards for customization and performance improvement.

Allows for system customization, extending functionality and improving performance.

This table encapsulates the crucial aspects of a GPS tracking system, highlighting how each component contributes to the efficient and accurate tracking of assets. Whether it’s ensuring a stable connection with the SMA connector or optimizing signal reception with appropriate mounting, each element plays a vital role in the system’s overall performance.

How Do GPS Antennas Work – 6 Simple Steps

Now that we understand what a GPS antenna is and the components that power it, the next step is to learn how they work. In this section, we’ll break down the process step by step, from receiving a GPS signal to producing a navigation output. To fully grasp how a GPS antenna functions, let’s break down its operation into six straightforward steps:

  1. Receiving GPS Signals.The GPS antenna captures signals transmitted by satellites orbiting the Earth. These signals contain the satellite’s location and time data.
  2. Signal Transfer. Once captured, the signal is sent through the coax cable to the GPS receiver. This transfer is crucial for the next steps in data processing.
  3. Data Processing. The GPS module within the receiver processes the satellite data. It calculates the precise location by analyzing the time it took for the signals to reach the antenna.
  4. GPS Networking. In scenarios where higher accuracy is required, multiple GPS antennas can work together. This GPS networking enhances precision through collective data analysis.
  5. Output Generation. After processing the data, the GPS receiver outputs navigation information. This output includes the asset’s exact location, speed, and direction of travel.
  6. Low Profile and Outdoor Antenna Designs.These designs are crucial for effective signal reception. Low-profile antennas minimize visibility and exposure to damage, while outdoor antennas are optimized for the best possible signal reception in open environments.

Understanding these steps reveals the sophisticated dance between technology and physics that allows GPS antennas to provide reliable location data. The synergy of these components and processes ensures that you can navigate and track with confidence.

Related Article: What Material Can Block GPS Signals?

Exploring The Different Types Of GPS Antennas

Handheld GPS Antenna

Did you know the world of GPS antennas is diverse, each type crafted for distinct purposes? In this section, we will explore three primary types: geodetic, rover, and handheld antennas. Starting with the geodetic antennas, known for their accuracy in fixed applications, we will uncover why they are indispensable for scientific and surveying tasks. Transitioning to rover antennas, we highlight their adaptability and importance in real-time tracking for mobile scenarios. Finally, we delve into handheld antennas, showcasing their convenience and reliability for personal navigation during adventures. By understanding these variations, you’ll learn not just the functionalities but also the significance of each antenna type. This insight will guide you in selecting the right GPS antenna for your needs, ensuring you have the most suitable technology for your specific applications.

Geodetic GPS Antennas

The geodetic GPS antenna specializes in providing high levels of accuracy. This type of GPS antenna supports scientific and surveying efforts where precision is key. This antenna is designed to stay stationary, ensuring it consistently captures satellite signals with great precision. Such accuracy is essential for applications requiring exact location measurements, such as mapping land changes or monitoring tectonic shifts. For professionals in fields that depend on precise data, like geology or cartography, the geodetic GPS antenna is a critical tool. Why? Because it enables the detailed and accurate mapping necessary for their work, making it indispensable for projects that require meticulous location data.

Rover GPS Antennas

The rover GPS antenna is designed for mobility, providing real-time position tracking on the move. Additionally, it easily mounts on vehicles or survey poles, enhancing its versatility. Commonly used in forestry, land surveys, and construction, this antenna suits situations needing portability and precise tracking. The rover GPS antenna design focuses on ensuring continuous and reliable tracking, even in dynamic environments. For professionals requiring accurate data while in motion, such as in environmental studies or infrastructure development, the rover GPS antenna is an essential tool. The rover GPS antenna provides the flexibility to gather precise location data without being tied to a single location, supporting a wide range of outdoor and mobile tasks.

Handheld GPS Antennas

The handheld GPS antenna caters to the needs of hikers, explorers, and individuals on the go. This type of antenna seamlessly integrates with GPS-enabled smartphones or specialized handheld units, offering user-friendly navigation. Designed for ease of use, the handheld antenna assists in navigating through unfamiliar territories. Whether embarking on an adventure in remote wilderness or navigating urban exploration, this antenna provides reliable location data at your fingertips. For anyone seeking guidance while traversing unknown landscapes, the handheld GPS antenna is an invaluable companion, ensuring you remain on track and informed of your surroundings.

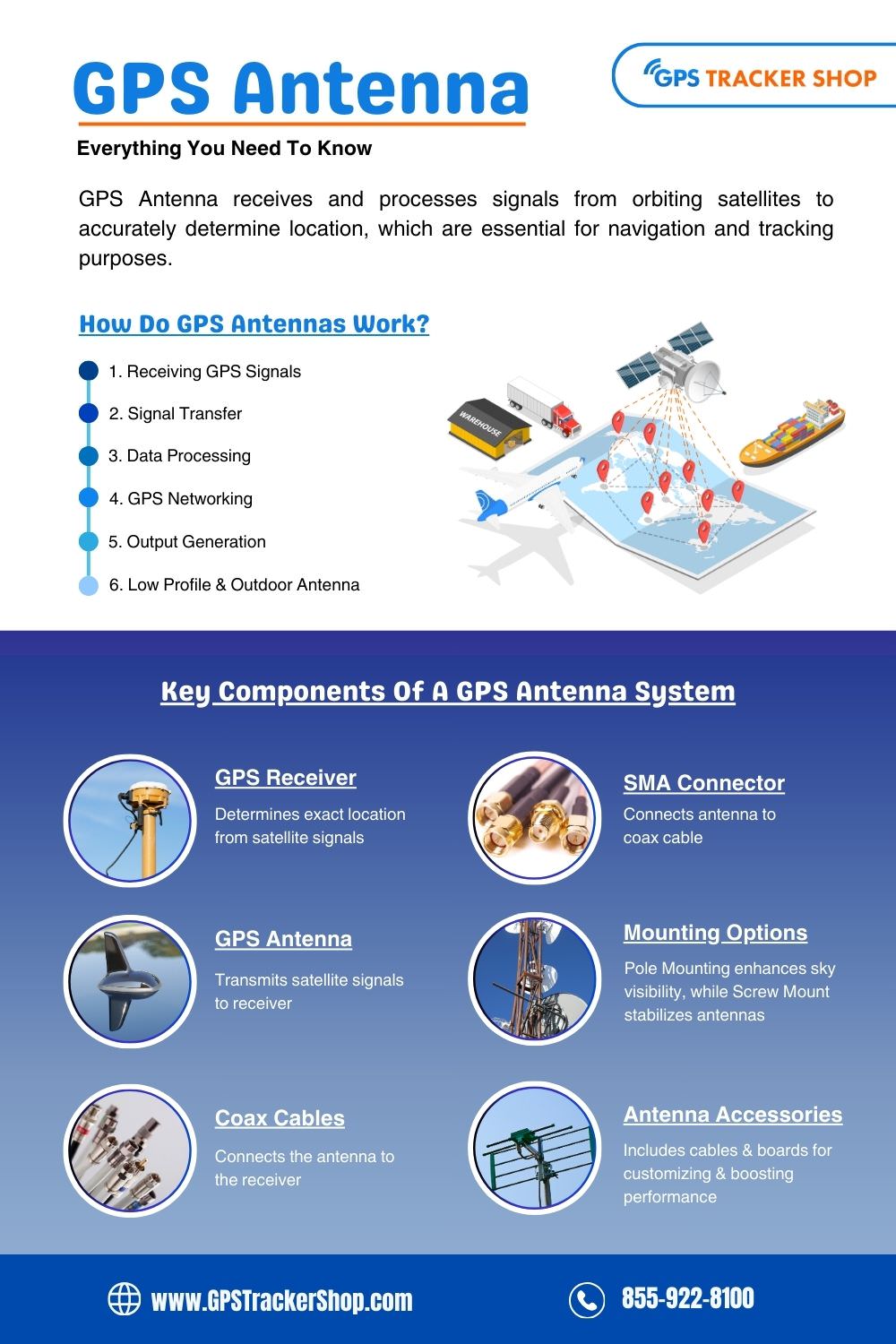

GPS Satellite Tracking Infographic

Frequently Asked Questions

Yes, several factors that can influence GPS antennas’ performance such as signal interference, antenna placement, and environmental conditions are key determinants. Signal interference, often caused by nearby electronic devices or structures, can disrupt signal reception. Antenna placement is crucial; obstructed views of the sky hinder signal acquisition, diminishing accuracy. Environmental conditions such as weather and terrain also play a role; adverse weather or dense foliage can attenuate signals. The quality and design of the antenna itself affect performance; higher gain and sensitivity antennas excel in weak signal areas. Additionally, the quality and length of coaxial cables connecting the antenna to the receiver impact signal integrity; longer or lower-quality cables result in signal loss.

GPS antennas typically support multiple satellite systems, including GPS, GLONASS, Galileo, and BeiDou. This means you get better accuracy and reliability, especially in tricky environments. By integrating signals from these systems, GPS antennas can improve your positioning, whether you're navigating city streets, managing farmland, or conducting scientific research. This multi-system compatibility makes them a great fit for a wide range of uses.

Yes, pole mounting is a great way to boost signal reception, especially when obstacles like buildings or trees are in the way. By raising the antenna above these obstructions, you can improve both signal strength and accuracy. If you're dealing with tough conditions, pole mounting is a smart choice to get the best performance from your GPS antenna.
